Swimming Pool Water Filtration System – Basic Model

48,000.00 ฿

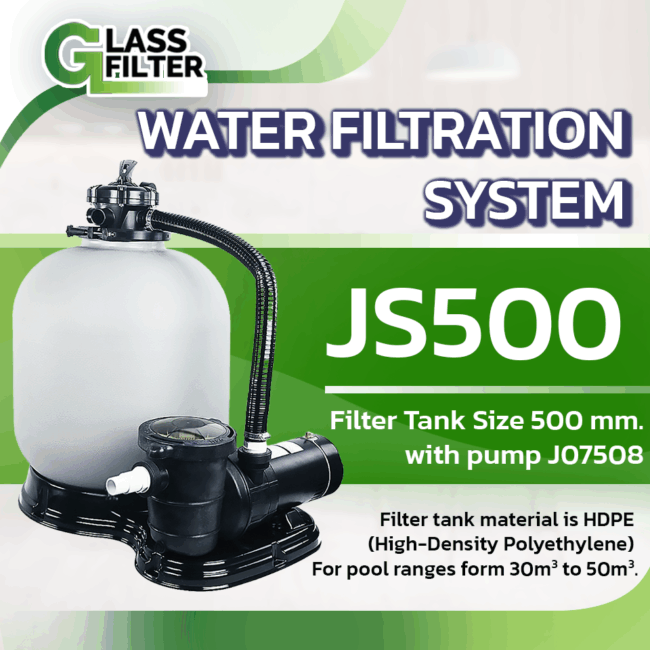

Professional-Grade Swimming Pool Filtration System designed for pools with a capacity of 30–50 cubic meters, this high-efficiency system offers easy operation and low maintenance. It includes premium-quality components such as a 500 mm HDPE filter tank, high-pressure water pump model J07508, AFM® (Activated Filter Media), and a smart PLC control system with an integrated chemical dosing unit for disinfection.

Description

System BASIC – Complete Filtration Set with Automatic Control Technology

✅ Fiberglass filter tank with a diameter of 50 cm

✅ High-performance AFM® filter media, capable of filtering down to 1 micron

✅ 1.5-inch manual multiport valve for easy backwash operation

✅ Swimming pool pump, 1 phase, 1 HP, Q.Max: 21 m³/h, Head Max: 16 m

✅ Control panel with 24-hour timer for pump operation

✅ 220Vac, 3kW heater with adjustable temperature control

✅ Peristaltic pump for chemical dosing (liquid chlorine, active oxygen, or flocculant)

✅ Ideal for private home pools, hotels, resorts, or small public pools

✅ Suitable for pool sizes from 30 m³ to 50 m³

✅ Base included only in the complete filter and pump set

✅ Durable base connects pump to sand filter tank for stable operation

✅ 1.5-inch inlet and outlet ports, compatible with multiple adapter sizes Supports connection with hoses or pipes sized 32 mm, 38 mm, 48 mm, 50 mm, 60 mm, and 63 mm.

✅ Heavy-duty material insure long lifetime and durable running.

1.5 HP Swimming Pool Pump Power Supply:220–240V AC, 50 Hz, Single Phase Maximum Flow Rate: 20 cubic meters per hour (m³/h) Inlet/Outlet Size: 1.5 inches

List SET FILTER + PUMP SYSTEM BASIC
Filter tank model 500 Yes Yes
Manual backwash valve Yes Yes
Filtration Pump Yes Yes
AFM® (Activated Filter Media) No Yes
3 kW heater No Yes
Control box for electrical parts No Yes
Programmable Logic Controller (PLC) for filtration period setup No Yes
Temperature controller No Yes
Modular contactor and protection breaker for the pump No Yes
Modular contactor and protection breaker for the heater No Yes
Dosing pump with programmable cycles for hydrogen peroxide injection No Yes
Dosing pump with programmable cycles for APF injection No Yes

Additional information

Weight 26 kg
Dimensions 84 × 73 cm
