Sale!

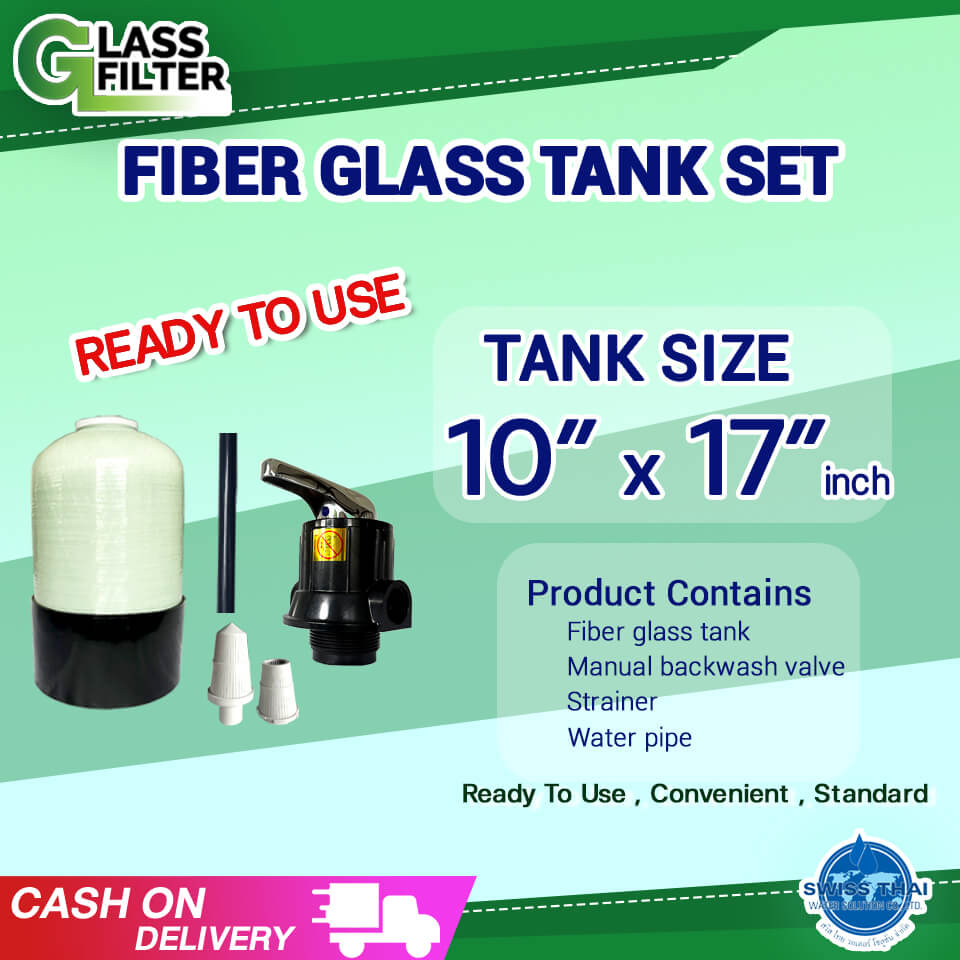

Fiber glass tank 10×17 inch. Manual backwash valve, Strainer, Water pipe

Original price was: 2,984.00 ฿.Current price is: 2,424.00 ฿.

  • Fiber glass tank 10″x17″
  • Manual backwash valve
  • Strainer
  • Water pipe
SKU: NFG-09206 Category: Tag:

Description

Fiber glass tank set

How to Use

  1. Pour the received glass filterinto the filter tank *
  2. Fill the water tank with waterand use as normally 24 hours *(between 24 hours, customers can use waternormally, without having to Backwash because the glass filter media in the bagHas been cleaned (Different from sand that has not been cleaned So have to doBackwash first))
  3. After 24 hours to make firstbackwash. (to allow the glass filter to align properly)
  4. After backwashing, the filtercan be used normally.
    * Clean the filter tank and mustnot contain any other filters In the filter tank before pouring glass filtermedia into it.
    **Do not Backwash before the first 24 hours due to Backwash will make the glass filter The AFM® comes out of thefilter tank because the AFM® glass filter is so lightweight it needs to beimmersed in water first.

AFM® Glass Filter Benefits

  • Can filter 40 times better than sand
  • Long service life-span 15 years
  • Filters your water clear and clean
  • Great ability to absorbs heavymetals and bacteria
  • High potential for negativeions (High negative ions help to better trap metal)
  • 300 times more contact area (ithas a hydrophobic surface which gave advanced adsorption of organic matters andmicroplastics)
  • Certified with filtration 1micron without flocculation
  • Self-sterilizing surface, fullyresistant to bacterial growth 99%
  • Can inhibit the formation ofbiofilms caused by bacteria

Details of AFM® Glass Filter

  • Mix grade AFM® glass filter media.The company will deliver mix grade of AFM® glass filter to customers accordingto the size that they have chosen. Fast, easy and ready to be used.
    AFM® (Activated Filter Media) is aglass filter media developed to replace sand. It is 40 times more efficientthan sand
  • AFM® is a product developed fromgreen and brown glass as a highly negatively charged ionized glass filter. Itcan filter heavy metals such as iron, manganese, chromium, phosphate, arsenicand can be cleaned by backwashing with normal water without using chemicals.
  • AFM® No porosity on the filtergranules, so eliminating the problem of biofilm formation
  • AFM® filters with fine filtrationquality up to 1 micron, thus helping to reduce bacteria and parasites well
  • AFM® can capture up to 300 timesmore molecules than sand filters, and can inhibit the growth of bacteria andalso eliminates mucus or biofilm problems caused by bacteria
  • AFM® reduces COD, BOD, colors andturbidity
  • AFM® enhances filtrationefficiency up to 0.1 microns when used in conjunction with APF®
Table of water tanks for Glass filter media AFM® ng filtering
Tank Size (Inch) Tank Size (Centimeter) Amount required for AFM® (Kilogram) Grade and quantity of AFM® required
AFM® Grade 1 ng AFM® Grade 2 ng AFM® Grade 3
8×18 20×45 12 6 6
10×17 25×43 16 8 8
8×35 20×89 22 11 11
8×44 20×110 30 15 15
10×54 25×135 50 25 25
12×52 30×130 81 40.5 40.5
12×65 30×165 100 50 50
14×65 35×165 134 67 67
16×65 40×165 184 92 92
18×65 45×165 234 117 117
21×62 52.5×155 250 125 125
24×72 60×180 375 200 175
30×60 75×150 500 250 125 125
36×72 90×180 825 425 200 200
40×60 100×150 950 500 225 225
