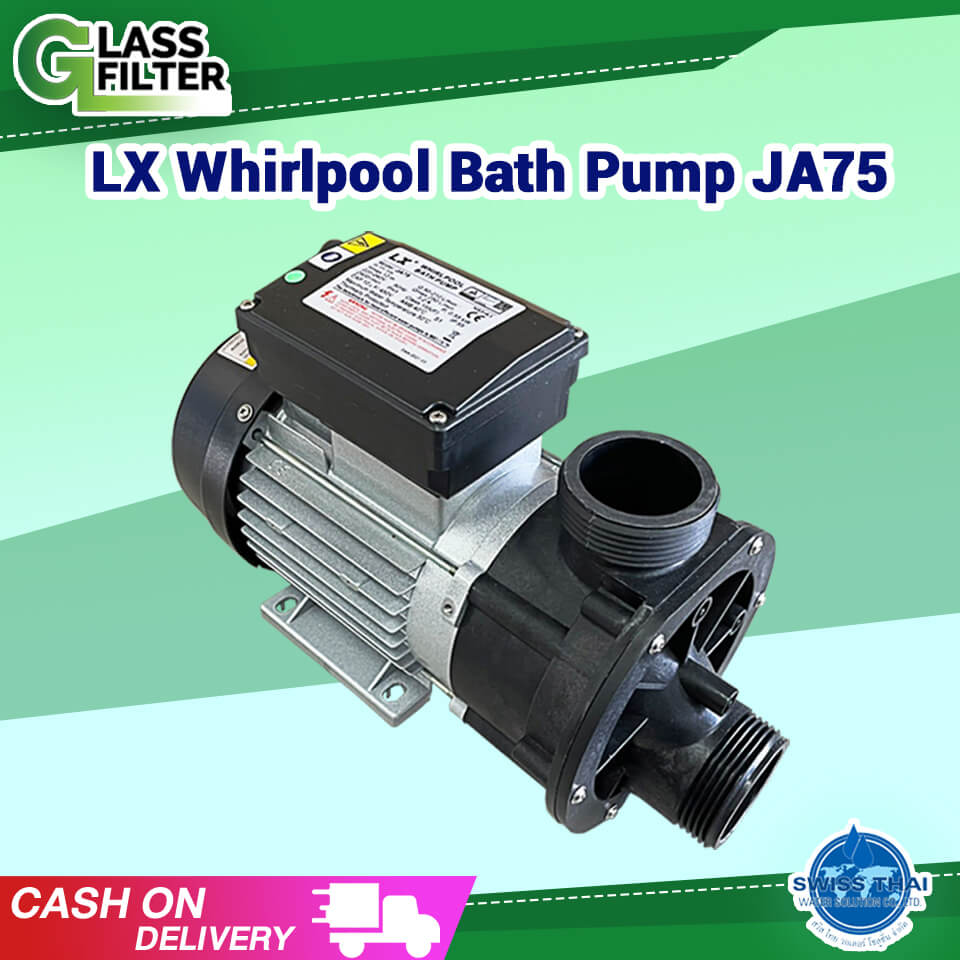

LX Whirlpool Bath Pump JA75

3,890.00 ฿

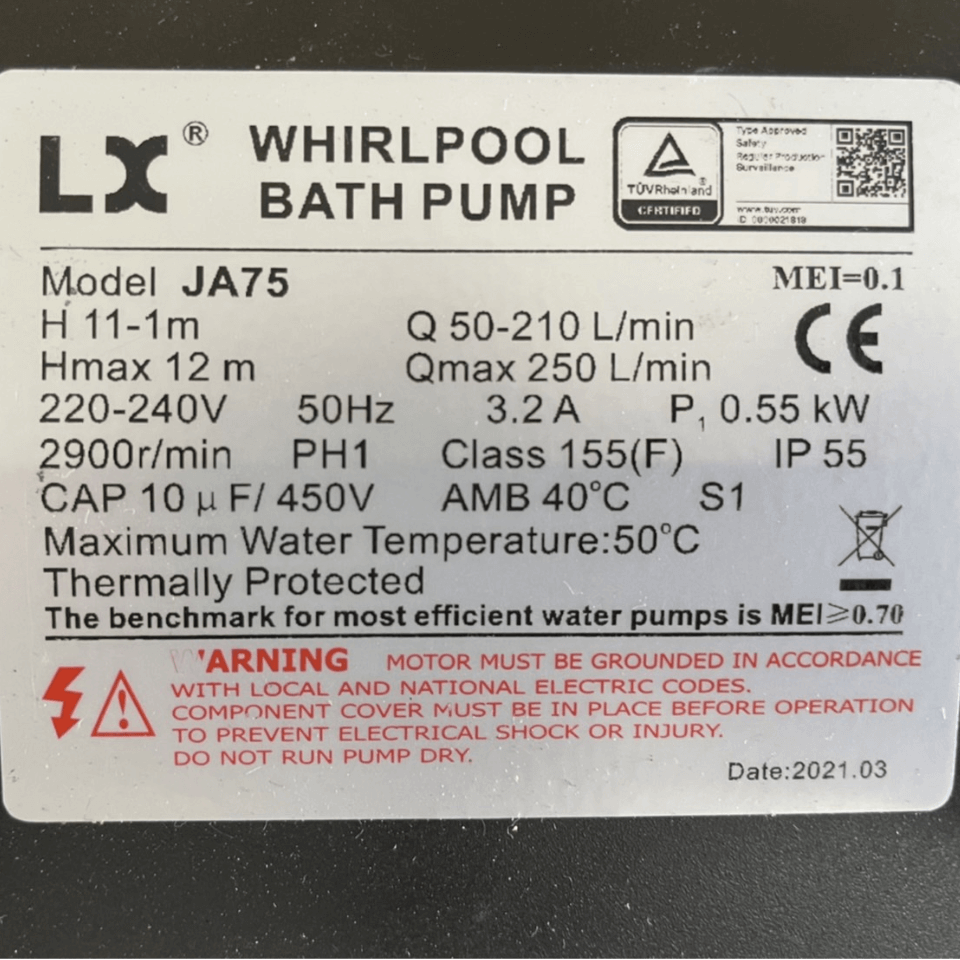

Specification:

  • Model: JA75
  • Size: 374 x 205 x 179 mm
  • Hmax: 12 m
  • Qmax: 250 L/min
  • Voltage/Hz: 220-240/50
  • Power (P1): 0.55 kW, HP 0.75
  • Amps: 3.2
  • Fitting size: 48.5 or 50 mm
  • Weight: 7.9 kg
  • Insulation: F
  • Protection: 1P55
  • Thermal protector: Single phase

Product warranty 1 year The warranty is valid only for any defect found if it is due to a defect in materials, design or assembly. No warranty is provided for consumables.

20 in stock

SKU: NIC-04170 Category: Tags: ,

Description

Working condition:

  • Medium temperature: 5-50 c
  • Environmental temperature: <50 C
  • Max. working pressure: 0.3 MPa
  • Packaging size: 435x212x270 mm

In most spas, there is usually a shut-off valve to stop the water flow before removing the pump — some residual water may still come out during removal. Make sure the spa is completely powered off before replacing the pump, and always read the user manual carefully before proceeding.

Technical diagrams

Details and characteristics of all LX Whirlpool pumps from the JA series:
Model Power (HP) Power (W) Max Flow (l/min) Max Head (m)
JA35 0.35 250 150 7.5
JA50 0.5 370 180 10
JA75 0.75 550 250 12
JA100 1 750 300 12
JA120 1.2 900 335 13

Model A B C D E F L H H1 H2
JA35 100 155 80 164 33 89 315 185 168 63
JA50 100 155 80 164 33 89 315 185 168 63
JA75 112 156 90 172 44 86 347 205 179 74
JA100 112 156 90 172 44 86 347 205 179 74
JA120 112 156 90 172 44 86 347 205 179 74

Additional information

Weight 7.9 kg
Dimensions 43.5 × 21.2 × 27 cm
