Description

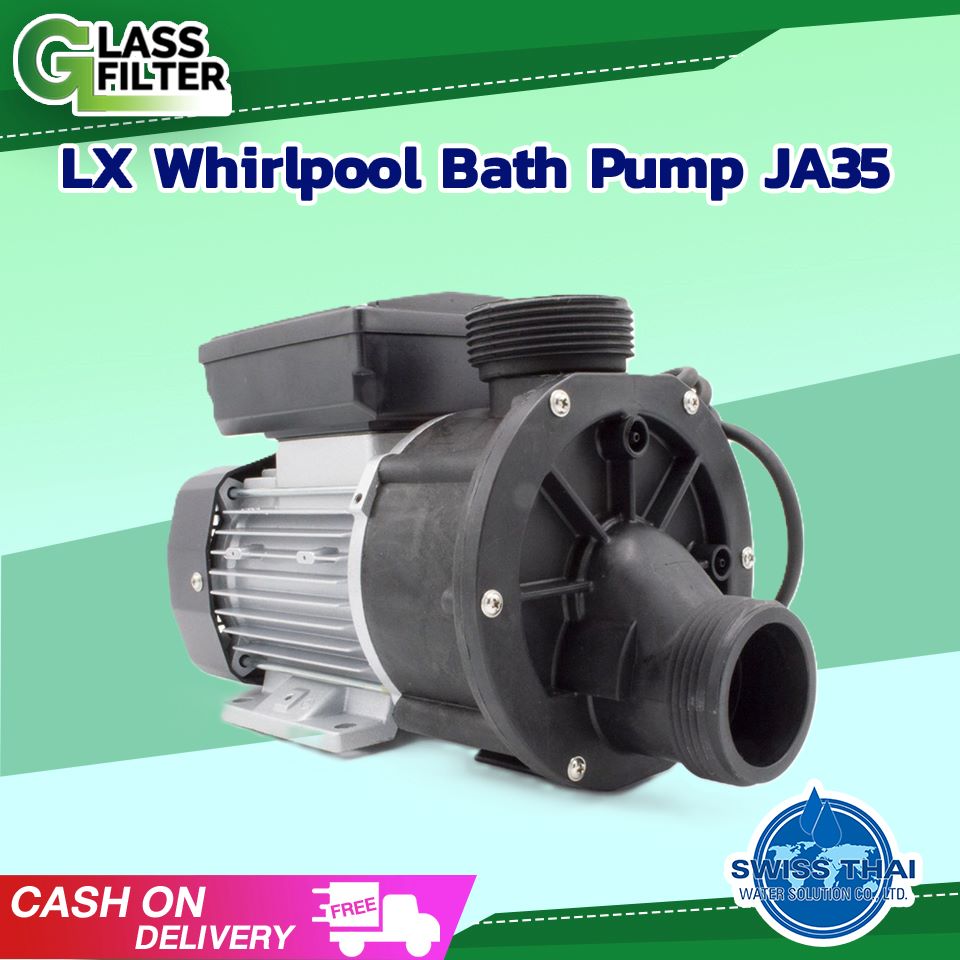

The LX JA35 is a high-quality and very popular circulation pump that can be used in almost all types of spas. Pumps from the LX brand are widely used in spa systems.
The main function of a circulation pump is to keep the spa water continuously moving, which is essential for proper filtration and helps the chemicals in the water work effectively.

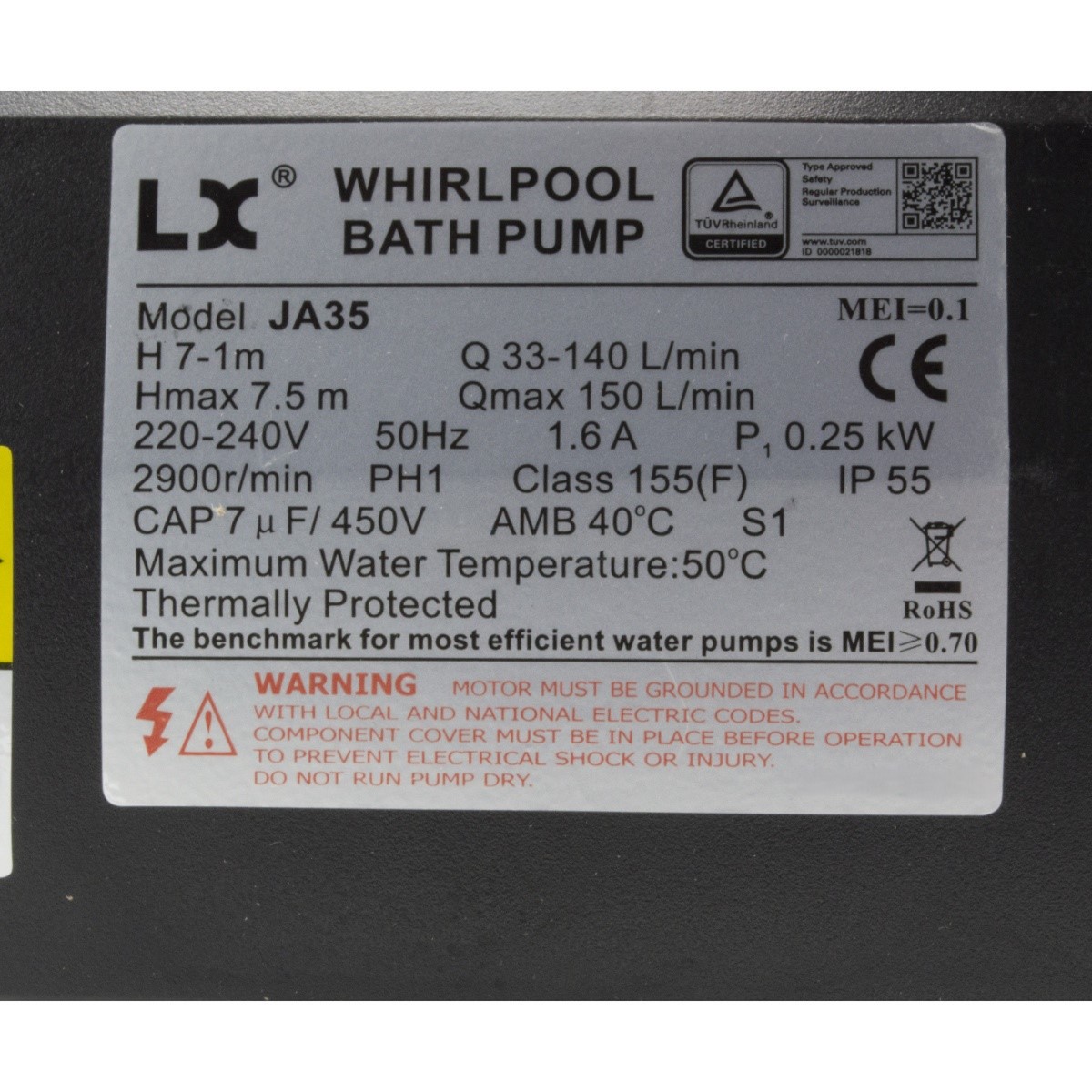

Working condition:
- Medium temperature: 5-50 c
- Environmental temperature: <50 C
- Max. working pressure: 0.3 MPa
- Packaging size: 435x212x270 mm
In most spas, there is usually a shut-off valve to stop the water flow before removing the pump — some residual water may still come out during removal. Make sure the spa is completely powered off before replacing the pump, and always read the user manual carefully before proceeding.

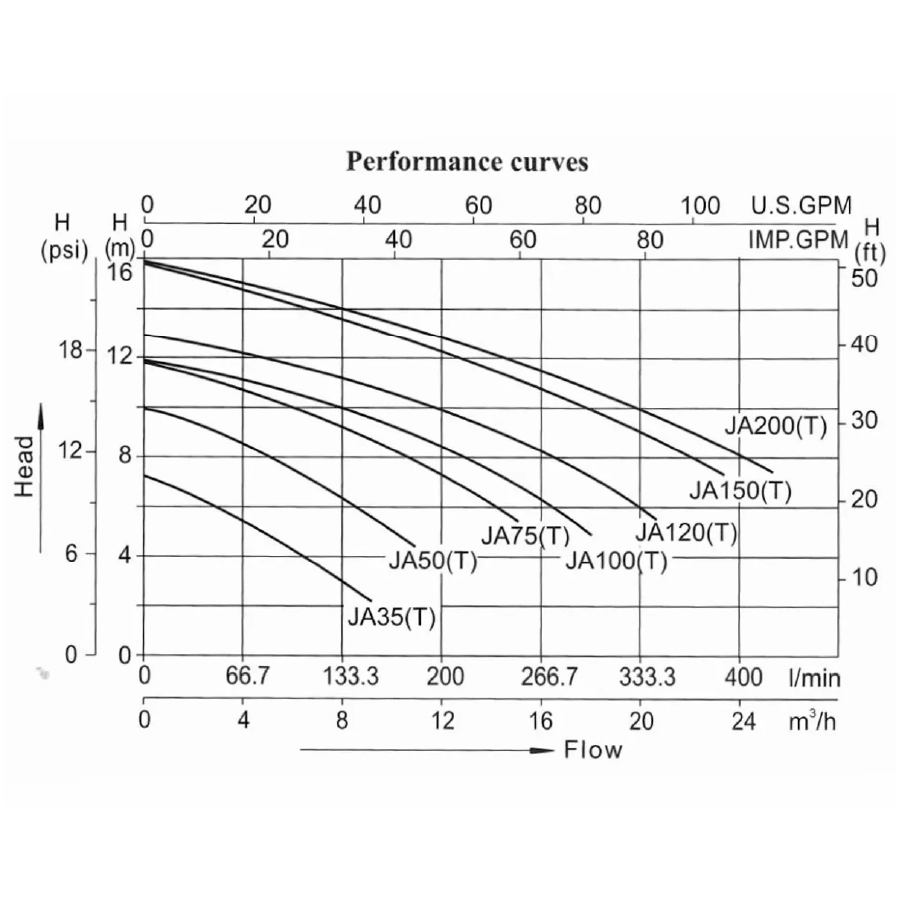

Technical diagrams
Details and characteristics of all LX Whirlpool pumps from the JA series:
| Model | Power (HP) | Power (W) | Max Flow (l/min) | Max Head (m) |
|---|---|---|---|---|
| JA35 | 0.35 | 250 | 150 | 7.5 |
| JA50 | 0.5 | 370 | 180 | 10 |
| JA75 | 0.75 | 550 | 250 | 12 |
| JA100 | 1 | 750 | 300 | 12 |
| JA120 | 1.2 | 900 | 335 | 13 |

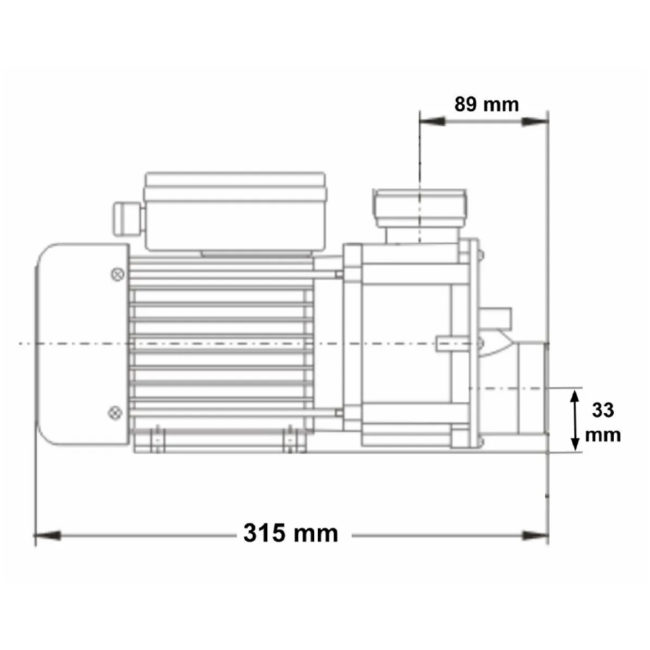

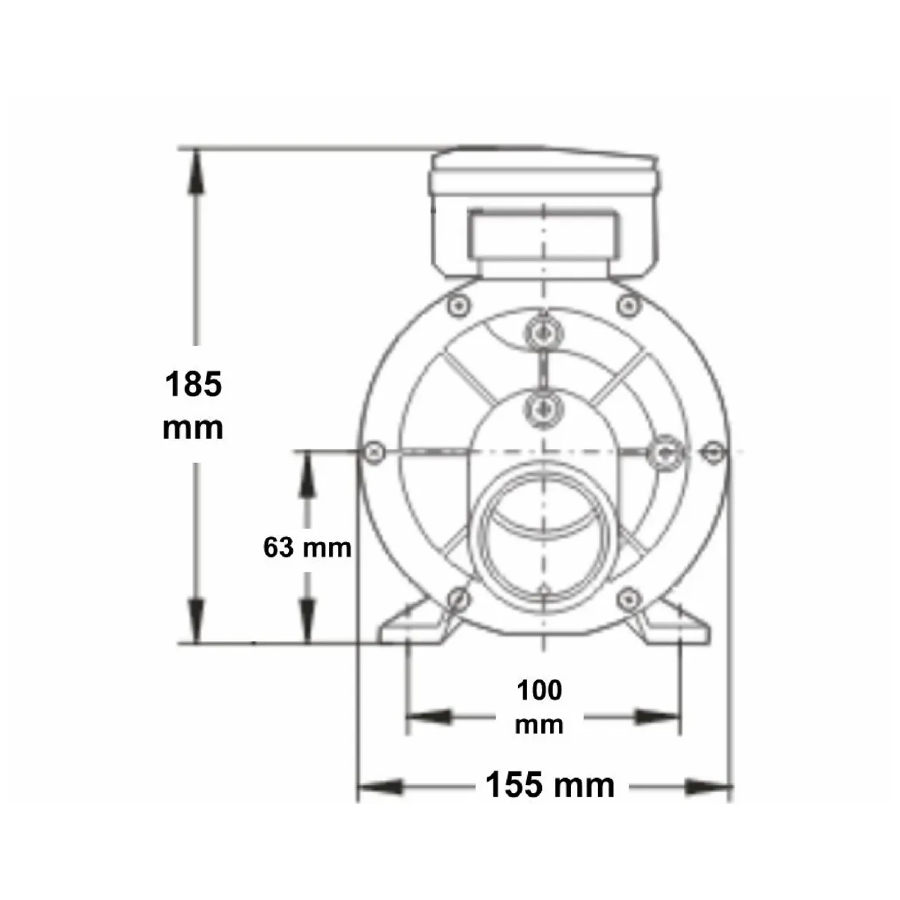

| Model | A | B | C | D | E | F | L | H | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|---|
| JA35 | 100 | 155 | 80 | 164 | 33 | 89 | 315 | 185 | 168 | 63 |
| JA50 | 100 | 155 | 80 | 164 | 33 | 89 | 315 | 185 | 168 | 63 |
| JA75 | 112 | 156 | 90 | 172 | 44 | 86 | 347 | 205 | 179 | 74 |
| JA100 | 112 | 156 | 90 | 172 | 44 | 86 | 347 | 205 | 179 | 74 |
| JA120 | 112 | 156 | 90 | 172 | 44 | 86 | 347 | 205 | 179 | 74 |
