Manual backwash Valve
Manual backwash Valve

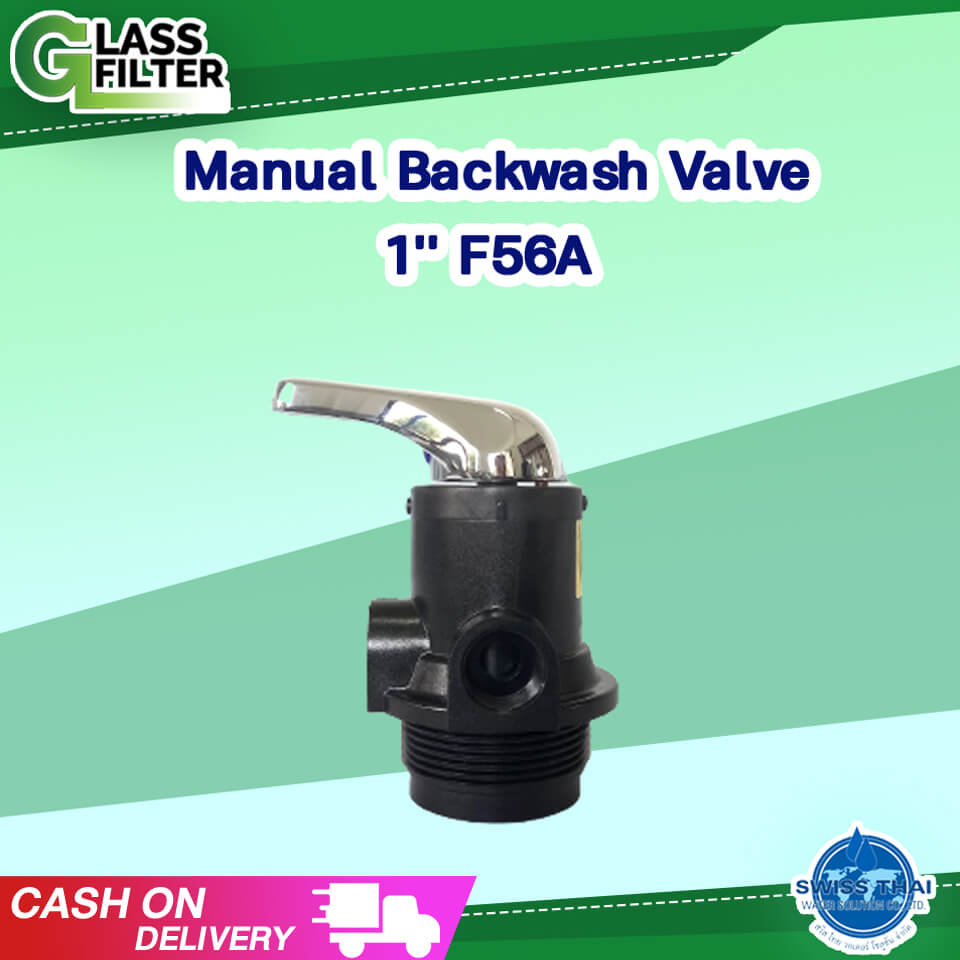

Manual backwash valve 1″ F56A

860.00 ฿

  • Several models are available, 1” and 3/4”
  • Made of material – valve head, stainless steel and the valve body is strong plastic

Specification:

  • Model: F56A1/A2 (51104/51204)
  • Handle material: Metal/Plastic
  • Mount type: Top mount
  • Inlet/outlet: 1”F
  • Drain: 1”F
  • Mounting base: 2.5”-8 NPSM
  • Riser pipe: 1.05” OD
  • Flow rate: 4 m3/h
  • Filter tank: 6”—12”
  • Water pressure: 0.15-0.6 Mpa
  • Water temperature: 5-50°C
  • Water turbidity: <20 FTU
  • Application: Activate carbon filter, sand filter, glass filter
  • Filter Media: Quartz sand, activated carbon, glass filter

5 in stock

SKU: NIC-04152 Category: Tag:

Description

Manual backwash Valve head (Return flush valve, manual system)

  • Several models are available, 1” and 3/4”.
  • It is a valve head for manual backwashing, consisting of 3 steps.
    – Direction for backwashing
    – Direction for effluent
    – Direction for filtering
  • Made of material – valve head, stainless steel and the valve body is strong plastic.
  • There are 3 pieces of O-link rubber used to cover the mouth of the pipe to prevent water from flowing out during use.

Additional information

Weight 0.9 kg
Dimensions 17 × 13 × 15 cm
