Description

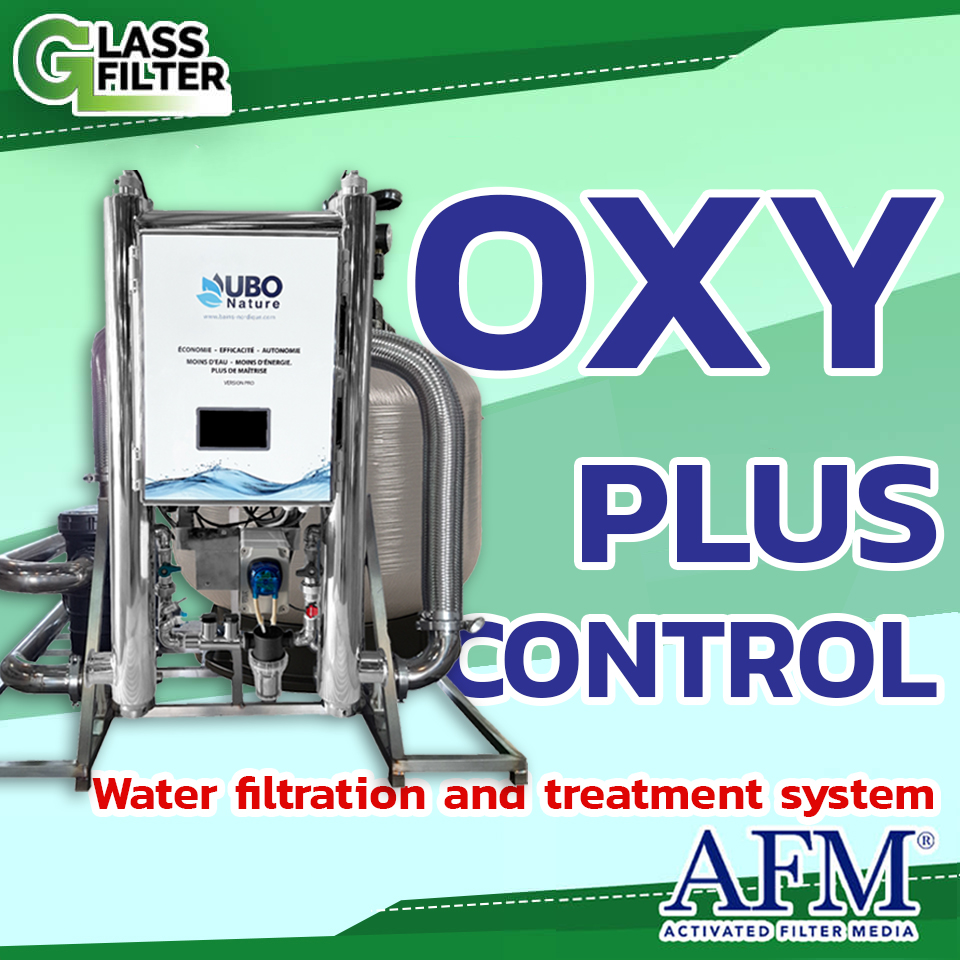

OXY Plus Control
Connected version, designed for new hot tubs and spas that want a higher level of monitoring and control. It combines filtration, water treatment and temperature management with more complete remote supervision and more advanced management depending on the installation.
Water treatment system
- Integrated filtration with pool pump ✔
- Temperature management ✔
- Automatic treatment injection ✔
- High-performance UV-C disinfection ✔
- Advanced treatment stage ✔
- Local PLC control ✘
- Remote monitoring and control ✔
- Touchscreen + mobile app ✔
Options
- Automatic backwash valve with automatic water filling
- Full inverter heat pump (COP 6 / 7 kW / titanium heat exchanger / automatic defrost)
- Red cedar wood protective enclosure size W 102 x D 89 x H 102 cm
- Automatic pH management
- Automatic ORP (mV) and pH management
- Automatic free chlorine (mg/L – amperometric probe), ORP (mV), and pH management
| Technical Specifications | OXY PLC | OXY Control | OXY Plus PLC | OXY Plus Control | OXY Pool PLC | OXY Pool Control |
|---|---|---|---|---|---|---|
| Inlet / Outlet Pipe Diameter | 2 inches | 2 inches | 2 inches | 2 inches | 2 inches | 2 inches |
| Filter Tank | – | – | Fiberglass, Stainless Steel | Fiberglass, Stainless Steel | Fiberglass, Stainless Steel | Fiberglass, Stainless Steel |
| Power Consumption | 190 W (Max) | 210 W (Max) | 3,540 W (Max) | 3,540 W (Max) | 460 – 960 W (Max) | 460 – 960 W (Max) |
| Heater | – | – | 3 kW Heater, SUS304 Stainless Steel | 3 kW Heater, SUS304 Stainless Steel | – | – |
