Swimming Pool Water Filtration System – Set Filter + Pump

13,500.00 ฿

Professional-Grade Swimming Pool Filtration System
Designed for swimming pools with a capacity of 30–50 cubic meters, this high-performance filtration system offers easy control and low maintenance. It features premium components such as a 500 mm fiberglass filter tank and the high-pressure water pump model J07508.

Description

Base only included in complete filter and pump combo.

✅ Fiberglass Filter Tank with a diameter of 50 cm

✅ Manual Multiport Valve (Backwash), 1.5-inch size, easy to operate

✅ Swimming Pool Pump, Single Phase, 1 HP, Q.Max: 21 m³/h, Head Max: 16 meters

✅ Tank is resistant to corrosion and UV rays

✅ Standard pump and durable filter base, easy to install and maintain

✅ Suitable for all types and sizes of swimming pools

✅ Ideal for private residential pools, hotels, resorts, or small public pools

✅ Supports pool sizes ranging from 30 m³ to 50 m³

✅ Base included only in the complete filter and pump set

✅ Strong base connects the pump to the sand filter tank for stable operation

✅ 1.5-inch inlet and outlet ports with multiple adapter sizes Compatible with hoses or pipes sized 32 mm, 38 mm, 48 mm, 50 mm, 60 mm, and 63 mm.

✅ Made from premium-grade materials Strong, durable, and built for long-term use. All spare parts are available for replacement when needed.

1.5 HP Swimming Pool Pump Voltage: 220–240V AC, 50 Hz, Single Phase Maximum Flow Rate: 20 cubic meters per hour (m³/h) Inlet/Outlet Size: 1.5 inches

List Set Filter + Pump System Basic
Filter tank model 500 Yes Yes
Manual backwash valve Yes Yes
Filtration Pump Yes Yes
AFM® (Activated Filter Media) No Yes
3 kW heater No Yes
Control box for electrical parts No Yes
Programmable Logic Controller (PLC) for filtration period setup No Yes
Temperature controller No Yes
Modular contactor and protection breaker for the pump No Yes
Modular contactor and protection breaker for the heater No Yes
Dosing pump with programmable cycles for hydrogen peroxide injection No Yes
Dosing pump with programmable cycles for APF injection No Yes

Additional information

Weight 26 kg

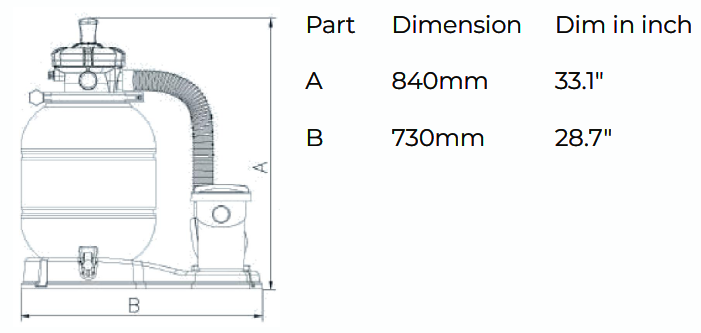

Dimensions 84 × 73 cm
