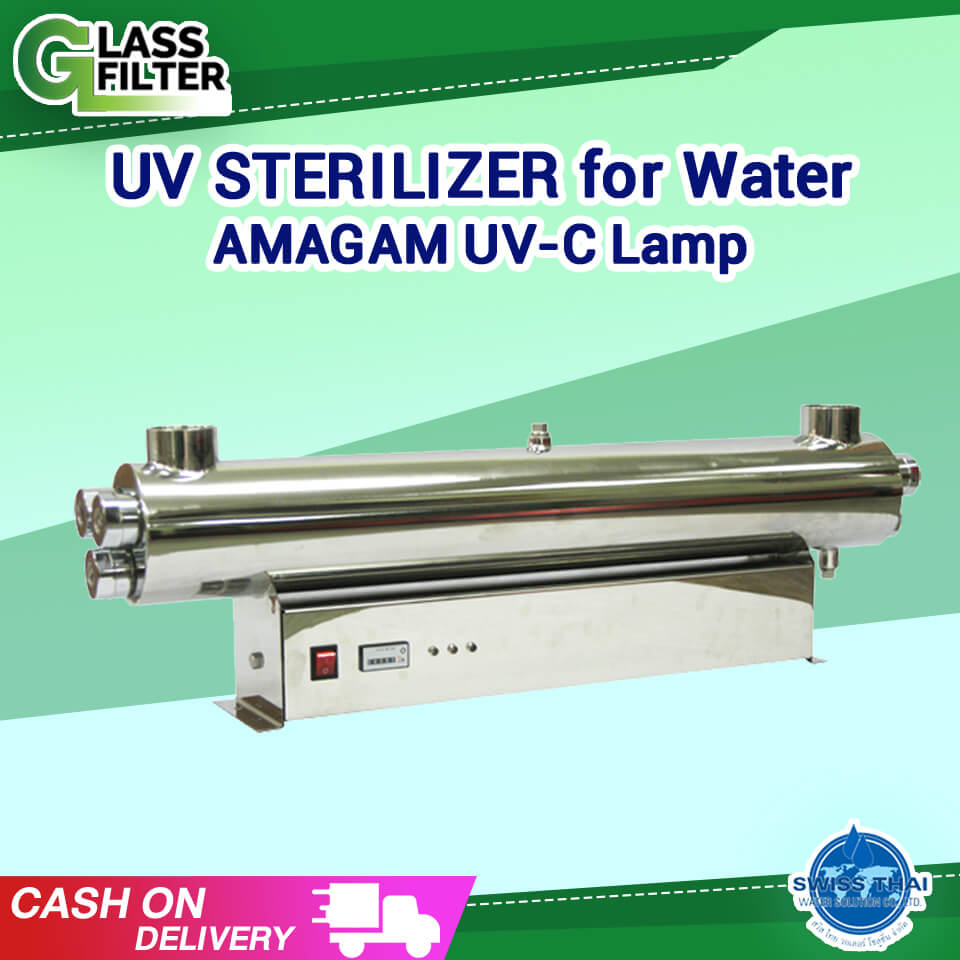

UV Sterilizer for Water UV 315W/3L

46,870.00 ฿

UV amalgam systems are more suitable for treating hot water.
Stainless steel UV-C water sterilizer complete kit (lamps, ballasts,
electrical connection, quartz, joints etc.)

Product: These products come with a warranty
starting from the purchase date. In case of any
manufacturing defects, the warranty period is 1 year.

Available on backorder

SKU: NFG-09059 Category: Tag:

Description

UV STERILIZER for Water UV 315W/3L

Stainless steel UV-C water sterilizer complete kit (lamps, ballasts, electrical connection, quartz, joints etc.)

Specification:

  • Maximum pump flow (m3 / hour): 27 m3/h
  • UV-C intencity: 320 μW/cm², par lampe
  • UV Dose: 137 mJ / cm²
  • Number of UV lamps (s): 3
  • Life time of lamps: 13,000 hrs.
  • Capacity of lamps: 315 W
  • Capacity of UV-C lamps: 105W UV-C
  • Water Inlet/Outlet: 2 ″
  • Pressure bar: 4.5 bar
  • Volume of treated water for swimming pool/spa Pump 12 hours/day: 22.8 m3
  • Volume of treated water for swimming pool/spa Pump 24h/24h: 45.7 m3
  • Dimension in cm: 93 x 13 x 28 cm

High-performance Amagam lamps are strong performers in the three key areas of 254nm UVC output, lamp efficiency and lamp life. Amagam lamps produce over 400% more 254nm UVC output than conventional low-pressure UV lamps while maintaining a superior lamp efficiency. The operating life of amagam lamps is up to 14,000 hours, depending on factors such as lamp operating conditions, a number of days on/off cycles and the duration of the off period. This is 3 to 4 times that of typical medium pressure lamps and almost twice that of standard low-pressure lamps. This long lamp life reduces UV System downtime and lamp replacement labor associated with standard low-pressure lamps by up to 50%. Similarly, the downtime associated with medium pressure systems is 3 to 4 times that of our amagam systems.

Products:

These products are guaranteed for one year from the date of purchase against any manufacturing defects.

Limited Warranty:

– **Lamps and ballasts:** 6-month warranty – The warranty applies only to defects caused by design or assembly. – Consumables are not covered by the warranty. – For warranty claims, the equipment must be properly packed and returned. – The cost of returning our equipment for warranty or other reasons is the responsibility of the customer. The return shipping after repair is at our expense, except if the customer refuses to accept the goods upon delivery. – In case of breakage, lamps and quartz glass are not covered by the warranty. – Warranty claims will only be processed if the product is returned to us with appropriate postage and valid purchase documentation. – Services provided under the warranty do not result in a new warranty period or an extension of the original warranty period. The warranty expires at the end of the original warranty period of the entire device. – We do not cover warranty claims resulting from improper installation or incorrect usage. – Warranty repairs can only be performed by our company.

Additional information

Weight 24 kg
Dimensions 16 × 28 × 89 cm
