RO Booster Pump
RO Booster Pump

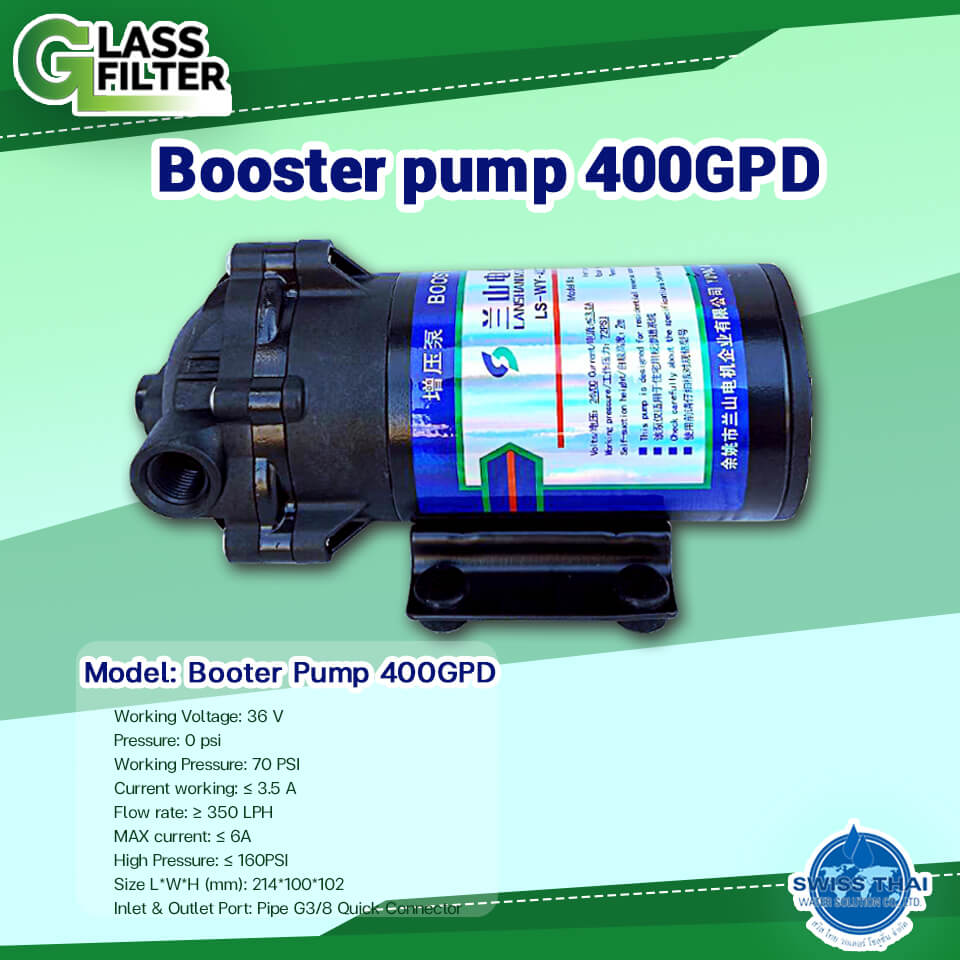

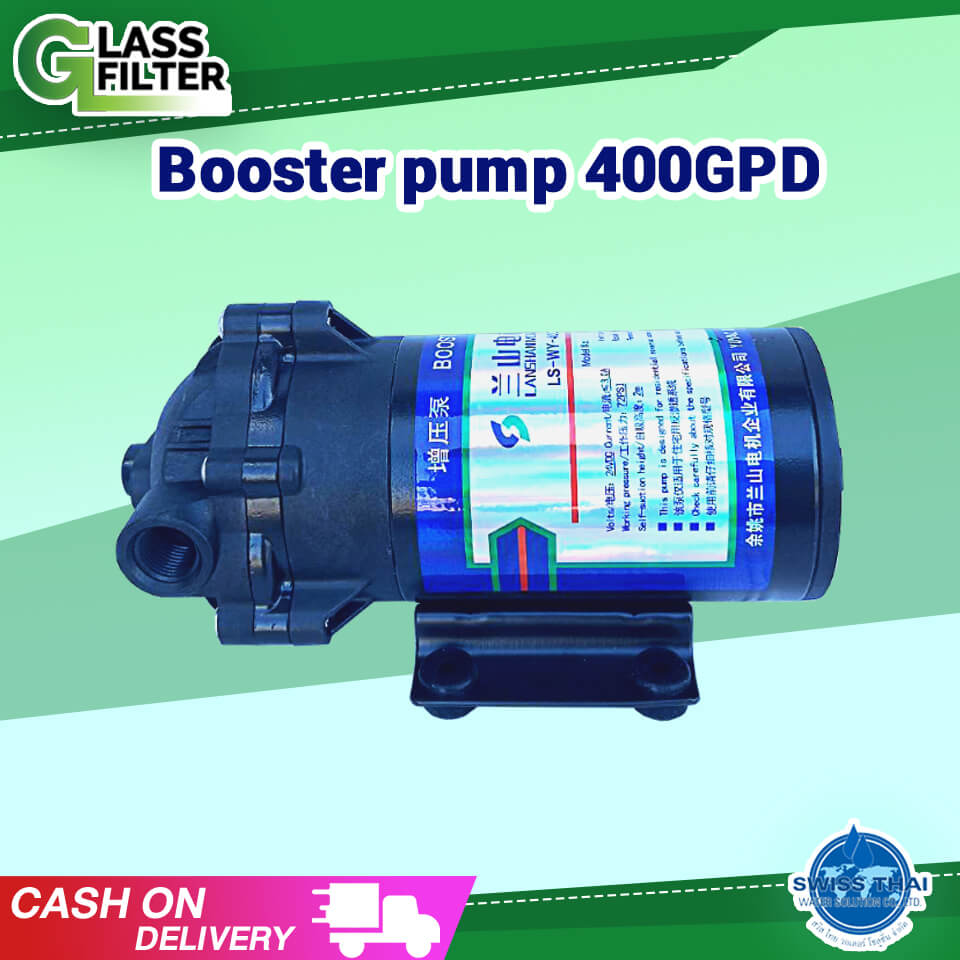

Booster pump 400GPD

2,130.00 ฿

Specification:

  • Model: Booter Pump 400GPD
  • Working Voltage: 36 V
  • Pressure: 0 psi
  • Working Pressure: 70 PSI
  • Current working: ≤ 3.5 A
  • Flow rate: ≥ 350 LPH
  • MAX current: ≤ 6A
  • High Pressure: ≤ 160PSI
  • Size L*W*H (mm): 214*100*102
  • Inlet & Outlet Port: Pipe G3/8 Quick Connector

Product warranty 1 year The warranty is valid only for any defect found if it is due to a defect in materials, design or assembly. No warranty is provided for consumables.

Out of stock

SKU: BOI-04290 Category: Tags: ,

Description

RO Booster Pump :

  •  It is a Diaphragm type water pump that acts mainly as an RO Booster Pump (water delivery pump into the RO Membrane filter) able to provide a good water flow rate according to the size of the membrane. Suitable for use in the household Small shopping malls with a high demand for water or buildings that are 2-3 stories high from the floor
  • Our booster pumps can be used with high-pressure R.O. 400 GPD membrane filters.
  • Product complete set with Adapter 220 V converted to 24 VDC 3.0 A
  • This pump is capable of continuous and efficient operation for follow-up circulation applications as well.
  • Ideal to work with hydraulic storage systems but also compatible with most hydraulic shut-off valves. This booster is suitable for 400 GPD water purifiers and reverse osmosis systems.

Instructions for use:

  • Requires proper power adapter
  • The pump is prohibited from being directly through the raw water without pre-filtering, otherwise it will affect its service life.
  • Pumping of corrosive liquids, alcohol, acid-base liquids, etc.
  • The wiring is not divided into the positive and negative poles, and two wires can be connected at will.
  • When installed inside the water purifier, tighten the screws to avoid resonance noise and try to keep enough for the heat dissipation pump.
  • The pump should not run continuously for more than 4 hours. stop for 30 minutes for more than 4 hours
  • The pump is not available for irrigation, solar, bathing, or pressure water heaters.
  • Size 400 GPD
  • Standard booster pump
  • Use the water pump to enter the filter tank.
  • Made of good quality stainless steel and the material on the pump body is high quality plastic. Resistant to heat, strong, meets the standards through the test of use.
