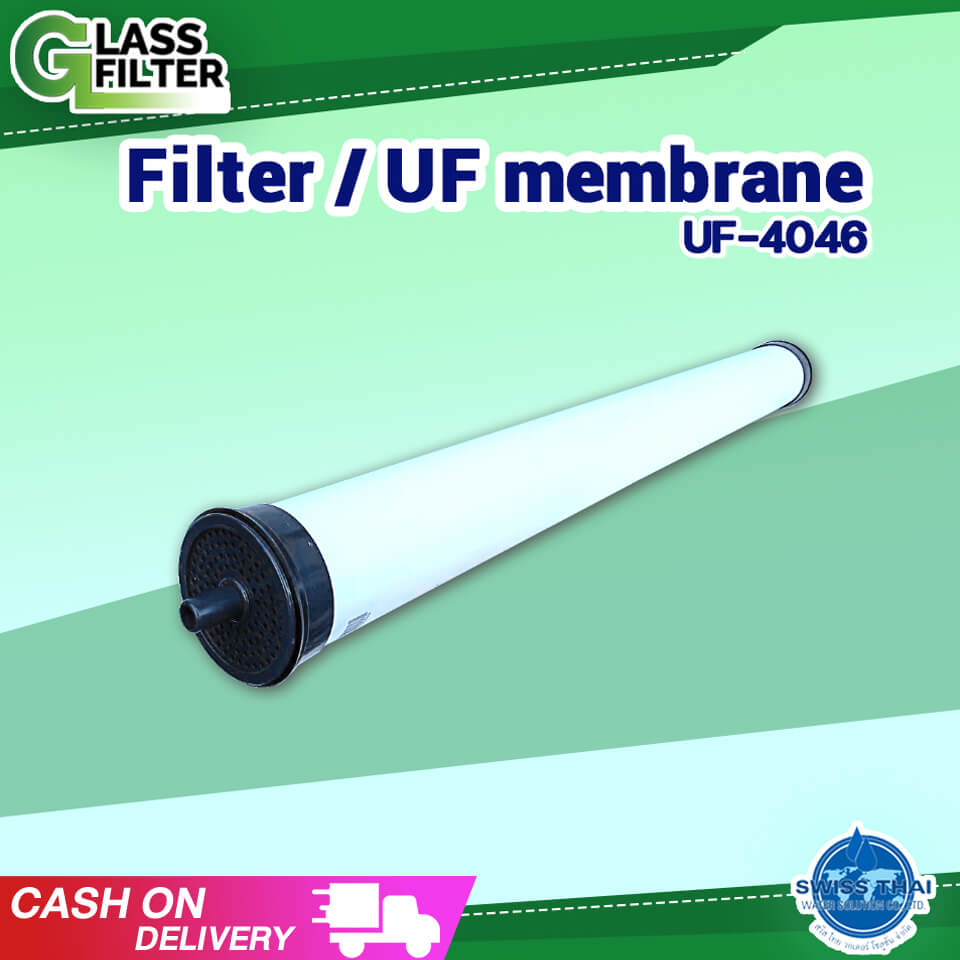

Cartridge with Membrane Filter : UF-4046

2,875.00 ฿

Specification:

  • Module: UF-4046
  • Flowrate: 720 L/H,12 L/M
  • Module type: Inside-Out
  • Shell And Seal Materials: PVC, Epoxy Resinx
  • Membrane Material: PAN/PVC
  • Molecular Weight Cut Off (Dalton): 50.000
  • Size (mm): Ø90*1155
  • Effective Membrane Area: 4.8 m2
  • Hollow Fiber Id/Od Size: 1.0 mm/1.6 mm
  • Max Operating Pressure: 0.3 Mpa
  • Suggest Operating Pressure: <0.2 Mpa
  • Max Transmembrane Pressure: <0.2 Mpa
  • Backwash Pressure: 0.05-0.1 Mpa
  • Produced Water Pollution Index (SDI 25): < 3
  • Initial Flux: 1.0 m3/H
  • Design Flux: 40-150 L/M2/H
  • Operating Mode: Cross Flow Or Dead-End Flow
  • Bacteria Removal Rate: >4 log
  • Permeate Turbidity: <0.1 NTU
  • Operating Temperature: 5~40 °C
  • PH Range: 2~10

6 in stock

SKU: NIC-04284 Category: Tags: ,

Description

Filter / UF membrane

  • There are many model sizes to choose from.
  •  Membrane for OR system
  •  Slogan – Membrane material made from Grade A polyplan, easy to replace, reducing the cost of maintenance of the filter system.
  •  UF (Ultra Filtration) filter is responsible for filtering small sediments, chlorine, germs (some types) at a maximum resolution of 0.01 microns. No electricity required and no waste water. Therefore, it is suitable for people who do not want to run and connect the sewer pipes. Service life is about 1 year.

Additional advantages of the Filter / UF membrane

  • Does not cause leftovers
  • Able to separate products as needed
  • Relatively low power consumption for separation
  • Can be separated without changing the phase
  • Install, control, automatic separation
  • Compact size does not take up space
  • No chemical reactions are involved.

Additional information

Dimensions 135.2 × 16.9 × 135.2 cm
